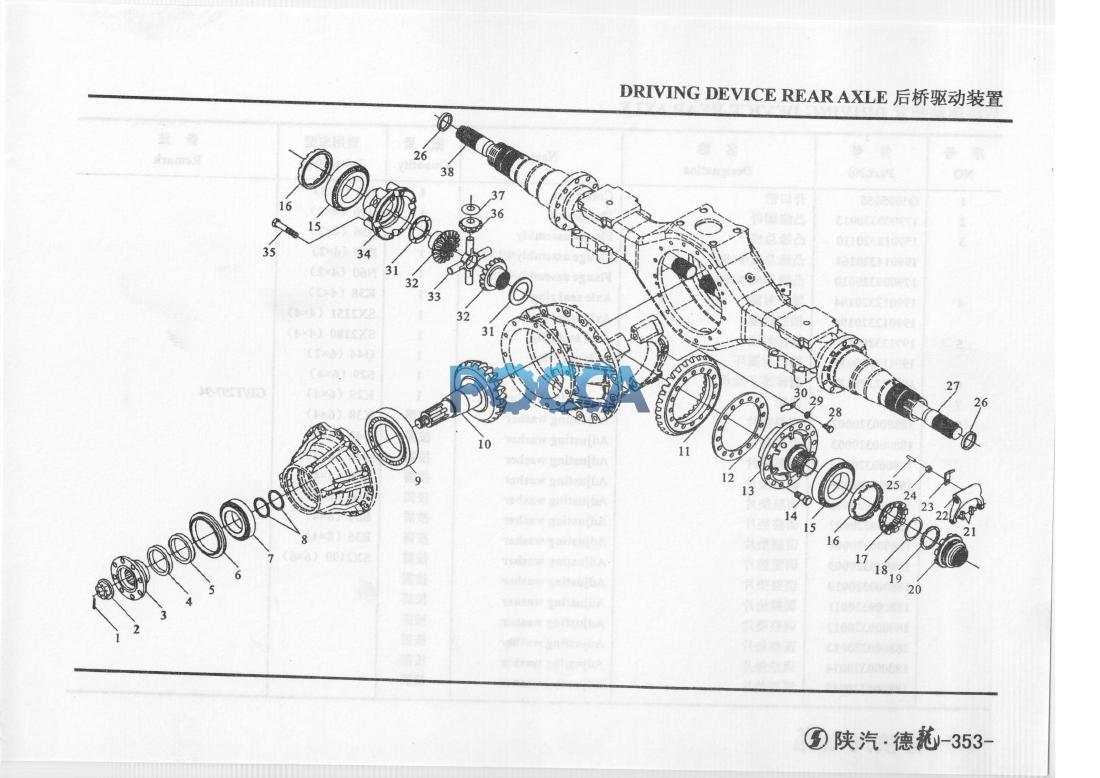

Корпус дифференциала SHAANXI (Шанкси) SHACMAN F2000 24 Гр. Задний и средний мосты
Корпус бортового редуктора Механизм привода среднего моста I.
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | Q5005055 | 1 | 开口销 | Cotter pin | S35 (4x2) | |||
| 2 | 179000320013 | I | 凸缘螺母 | Flange nut | 046 (4x2) | |||
| 3 | 199012320110 | 1 | 凸缘总成 | Flange assembly | N56 (4x2) | |||
| 3 | 199014320261 | 1 | 凸缘总成中180 | Flange assemblyO180 | F50 (4x2) | |||
| 3 | 179000320010 | 1 | 凸缘总成〇>150 | Flange assembly<D150 | N60 (4x2) | |||
| 4 | 199012320184 | I | 轴密封圈 | Axle seal ring | K38 (4x2) | |||
| 4 | 199012320194 | 1 | 轴密封圈 | Axle seal ring | SX2151 (4x4) | |||
| 5 | 19912320030 | 1 | 轴密封圈 | Axle seal ring | SX2180 (4x4) | |||
| 5 | 199112320031 | 1 | 轴密封圈环 | Axle seal ring | 044 (6x2) | |||
| 6 | 199012320121 | 1 | 圆锥滚子轴承 | Ring | S29 (6x4) | |||
| 7 | 30312 | I | 齿轮 | Tapered roller bearing | GBT297-94 | K29 (6x4) | ||
| 8 | 188000320002 | 按需 | 调整垫片 | Adjusting washer | K38 (6x4) | |||
| 8 | 188000320003 | 按需 | 调整垫片 | Adjusting washer | 043 (6x4) | |||
| 8 | 188000320004 | 按需 | 调整垫片 | Adjusting washer | 046 (6x4) | |||
| 8 | 188000320005 | 按需 | 调整垫片 | Adjusting washer | N56 (6x4) | |||
| 8 | 188000320006 | 按需 | 调整塾片 | Adjusting washer | N60 (6x4) | |||
| 8 | 188000320007 | 按需 | 调整垫片 | Adjusting washer | B30 (8x4) | |||
| 8 | 188000320008 | 按需 | 调整垫片 | Adjusting washer | B36 (8x4) | |||
| 8 | 188000320009 | 按需 | 调整垫片 | Adjusting washer | SX2190 (6x6) | |||
| 8 | 188000320010 | 按需 | 调整垫片 | Adjusting washer | ||||
| 8 | 188000320011 | 按需 | 调整垫片 | Adjusting washer | ||||
| 8 | 188000320012 | 按需 | 调整垫片 | Adjusting washer | ||||
| 8 | 188000320013 | 技需 | 调整垫片 | Adjusting washer | ||||
| 8 | 188000320014 | 按需 | 调整垫片 | Adjusting washer | ||||
| 8 | 188000320015 | 按需 | 调整垫片 | Adjusting washer | ||||
| 9 | 32315GB/T297-94 | 1 | 圆锥滚子轴承 | Tapered roller bearing | 用于 i=5.73、6.72、7.49、8.40、 | S35 (4x2) | ||
| 9 | 9.49 | 046 (4x2) | ||||||
| 9 | 32316GB/T297-94 | 1 | 圆锥滚子轴承 | Tapered roller bearing | 用于 i=4.8、4.42 | N56 (4x2) | ||
| 10 | 199012320127 | 1 | 主动锥齿轮(i=4.42) | Active taper gear (i=4.42) | F50 (4x2) | |||
| 10 | 199012320124 | 1 | 主动锥齿轮（i=4.8) | Active taper gear (i=4.8) | N60 (4x2) | |||
| 10 | 199012320126 | 1 | 主动锥齿轮（i=5.73) | Active taper gear (i=5.73) | K38 (4x2) | |||
| 10 | 199012320128 | 1 | 主动锥齿轮（i=6.72) | Active taper gear (i=6.72) | SX2151 (4x4) | |||
| 10 | 199012320130 | 1 | 主动锥齿轮（i=7.49) | Active taper gear (i=7.49) | SX2180 (4x4) | |||
| 10 | 199012320132 | 1 | 主动锥齿轮（i=8.40) | Active taper gear (i=8.40) | 044 (6x2) | |||
| 10 | 199112320001 | 1 | 主动锥齿轮（i=9.49) | Active taper gear (i=9.49) | S29 (6x4) | |||
| 11 | 199012320125 | 1 | 从动锥齿轮（i=4.42) | Passive taper gear (i=4.42) | K29 (6x4) | |||
| 11 | 199012320035 | 1 | 从动锥齿轮（i=4.8) | Passive taper gear (i=4.8) | K38 (6x4) | |||
| 11 | 199012320037 | 1 | 从动锥齿轮（i=5.73) | Passive taper gear (i=5.73) | 043 (6x4) | |||
| 11 | 199012320006 | 1 | 从动锥齿轮（i=6.72) | Passive taper gear (i=6.72) | 046 (6x4) | |||
| 11 | 199012320005 | 1 | 从动锥齿轮（i=7.49) | Passive taper gear (i=7.49) | N56 (6x4) | |||
| 11 | 199012320013 | 1 | 从动锥齿轮（i=8.40) | Passive taper gear (i=8.40) | N60 (6x4) | |||
| 11 | AZ9112320153 | 1 | 从动锥齿轮（i=9.49) | Passive taper gear (i=9.49) | B30 (8x4) | |||
| 12 | 199012320197 | 1 | 衬环 | Ring | 用于 i=7.49、8.40、9.49 | B36 (8x4) | ||
| 13 | AZ9112320197 | 1 | 差速器壳（左） | Differential housing (left) | 用于 i=4.8、6.72、5.73 | SX2190 (6x6) | ||
| 13 | DZ9114320011 | 1 | 差速器壳（左） | Differential housing (left) | 用于 i=.49、8.4、9.49 | |||
| 14 | DZ9114320012 | 16 | 六角法兰面承面带齿螺栓 | Hex.screw | 用于 i=4.8、6.72、5.73 | |||
| 14 | 32216 | 16 | 六角法兰面承面带齿螺栓 | Hex.screw | 用于 i=7.49、8.4、9.49 | |||
| 15 | GB/T297-94 | 2 | 圆锥滚子轴承 | Tapered roller bearing | ||||
| 16 | 1380009320159 | 2 | 差速器轴承调整螺母 | Differential adjusting nut | ||||
| 17 | 1380009320155 | 1 | 固定啮合套 | Fixed engage cowl | ||||
| 18 | 138009320158 | 1 | 锁止垫片 | Locking washer | ||||
| 19 | 138009320157 | 1 | 圆螺母 | Circle nut | ||||
| 20 | 138009320156 | 1 | 滑动啮合套 | Sliding engage cowl | ||||
| 21 | 118000320077 | 2 | 拨叉活动块 | Sliding block | ||||
| 22 | 199012320014 | 1 | 拨叉 | Fork | ||||
| 23 | 199012320023 | 1 | 弯板 | Bend plate | ||||
| 24 | Q340B08 | 1 | I型六角螺母 | Hex.nut | ||||
| 25 | Q2800825 | 1 | 开槽锥端紧固螺钉 | Slit nut | ||||
| 26 | 190003074340 | 2 | 轴密封圈 | Axle packing ring | ||||
| 27 | 199012340023 | 1 | 半轴（左） | Axle shaft (left) | ||||
| 27 | DZ9112340221 | 1 | 半轴（左）（850车架） | Axle shaft (left) | ||||
| 28 | Q150B0816 | 2 | 六角头螺栓 | Hex bolt | ||||
| 29 | Q40308 | 2 | 弹簧垫圈 | Spring washer | ||||
| 30 | 179000320027 | 2 | 止动片 | Stop piece | ||||
| 31 | 118000320131 | 按需 | 调整垫片 | Adjusting washer | ||||
| 31 | 118000320012 | 按需 | 调整垫片 | Adjusting washer | ||||
| 31 | 118000320132 | 按需 | 调整塾片 | Adjusting washer | ||||
| 31 | 199012320129 | 按需 | 调整垫片 | Adjusting washer | ||||
| 31 | 138009320169 | 按需 | 调整塾片 | Adjusting washer | ||||
| 32 | 199012320009 | 2 | 半轴齿轮 | Axle shaft gear | ||||
| 33 | 199014320091 | 1 | 差速器十字轴 | Differential cross axle | ||||
| 34 | 199012320008 | 1 | 差速器壳（右） | Differentia! housing (right) | ||||
| 35 | Q151B1480TF2 | 8 | 六角头螺栓 | Hex.screew | ||||
| 36 | 199012320010 | 4 | 行星齿轮 | Planet gear | ||||
| 37 | 199012320150 | 4 | 行星齿轮垫片 | Planet gear washer | ||||
| 38 | 199012340024 | 1 | 半轴（右） | Axle shaft (right) | ||||
| 38 | DZ9112340222 | 1 | 半轴（右） | Axle shaft (right) |
