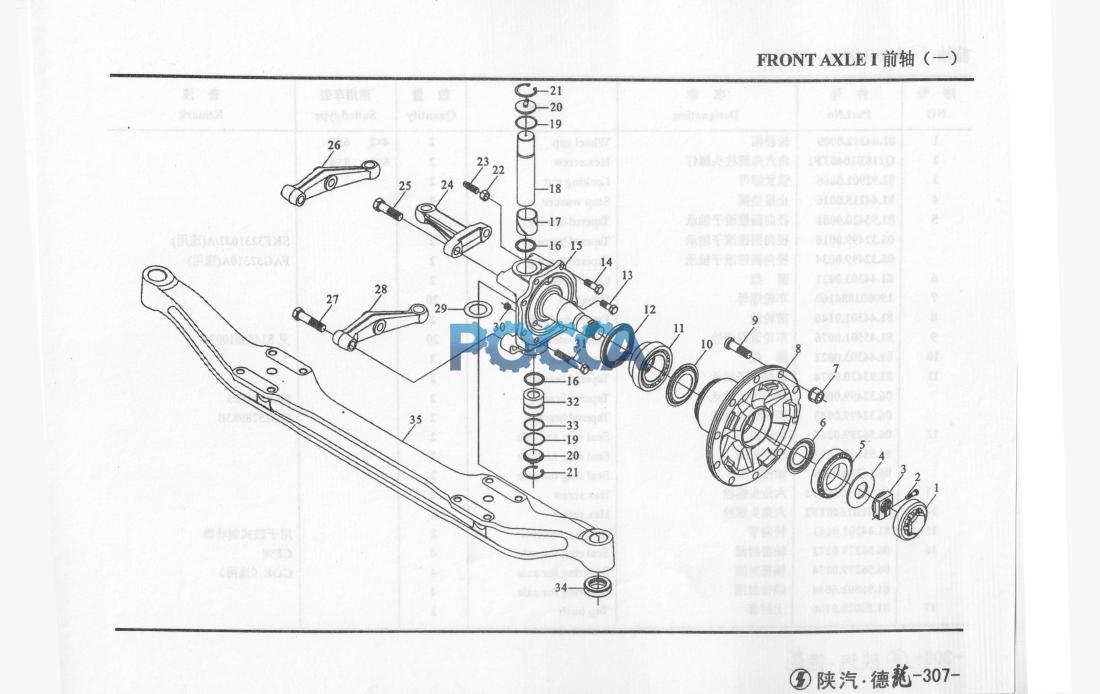

Передняя подвеска SHAANXI (Шанкси) SHACMAN F2000 30 Гр. Передняя ось (передний мост)
Передняя подвеска II
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | 81.44312.0009 | 2 | 轮毂帽 | Wheel cap | 4x2 6x4 | |||
| 2 | Q218B1040TF2 | 2 | 内六角圆柱头螺钉 | Hex.screw | 6x2 8x4 | |||
| 3 | 81.92901.0066 | 2 | 锁紧螺母 | Locking nut | ||||
| 4 | 81.44215-0016 | 2 | 止推垫圈 | Stop washer | ||||
| 5 | 81.93420.0081 | 2 | 径向圆锥滚子轴承 | Tapered bearing | ||||
| 5 | 0632499.0016 | 2 | 径向圆锥滚子轴承 | Tapered bearing | SKF32310J2/A(选用） | |||
| 5 | 06.32499.0034 | 2 | 径向圆锥滚子轴承 | Tapered bearing | FAG32310A(选用） | |||
| 6 | 81.44303.0021 | 2 | 圆盘 | Circle block | ||||
| 7 | 190003884160 | 20 | 车轮螺母 | Wheel nut | ||||
| 8 | 81.44301.0146 | 2 | 前轮毂 | Front wheel hub | ||||
| 9 | 81.45501.0076 | 20 | 车轮紧固螺栓 | Wheel fixture bolt | 见 81455010075 | |||
| 10 | 81.44303.0022 | 2 | 圆盘 | Circle block | ||||
| 11 | 81.93420.0074 | 2 | 圆锥滚子轴承 | Tapered bearing | ||||
| 11 | 06.32499.0081 | 2 | 圆锥滚子轴承 | Tapered bearing | SKF331933 | |||
| 11 | 06.32499.0043 | 2 | 圆锥滚子轴承 | Tapered bearing | FAG528983B | |||
| 12 | 06.56289.0267 | 2 | 轴密封圈 | Seal ring for axle | ||||
| 12 | 81.96502.6045 | 2 | 轴密封圈 | Seal ring for axle | ||||
| 12 | 06.56280.0605 | 2 | 轴密封圈 | Seal ring for axle | ||||
| 13 | Q151B1635TF2 | 4 | 六角头螺栓 | Hex.screw | ||||
| 14 | Q151B1640TF2 | 8 | 六角头螺栓 | Hex.screw | ||||
| 15 | 81.44201.0143 | 2 | 转向节 | steering knuckle | 用于鼓式制动器 | |||
| 16 | 06.56279.0273 | 4 | 轴密封圈 | Seal ring for axle | CFW | |||
| 16 | 06.56279.0274 | 4 | 轴密封圈 | Seal ring for axle | GOE (选用） | |||
| 16 | 81.96502.6044 | 4 | 轴密封圈 | Seal ring for axle | ||||
| 17 | 81.93020.0706 | 2 | 上衬套 | Top bush | ||||
| 18 | 81.44205.0057 | 2 | 转向节主销 | Steering hnuckle pin | ||||
| 19 | 81.96501.0671 | 4 | 密封圈 | Packing ring | ||||
| 20 | 81.90712.6011 | 4 | 密封盘总成 | Packing disc assembly | ||||
| 21 | Q43058 | 4 | 孔用弹性挡圈 | Cirlip for hole | ||||
| 22 | Q341B16 | 2 | 六角螺母 | Hex nut | ||||
| 23 | 81.90490.0479 | 2 | 紧定螺钉 | Fixed bolt | ||||
| 24 | 81.46705.0267 | 1 | 转向节臂（左） | Steering hnuckle arm (left) | ||||
| 24 | 81.46705.0268 | 1 | 转向节臂（右） | Steering knuckle arm (right) | ||||
| 25 | 06.02834.3219 | 2 | 六角头螺栓 | Hex,screw | ||||
| 26 | DZ9100410082 | i | 转向梯形臂（右） | Steering trapezium arm (right) | ||||
| 27 | 06.02834.3223 | 4 | 六角头螺栓 | Hex.screw | ||||
| 28 | DZ9100410081 | 1 | 转向梯形臂（左） | Steering trapezium arm (left) | ||||
| 29 | 81.90711.0671 | 按需 | 调整垫圈 | Adjusting washer | ||||
| 29 | 81.90711.0672 | 按需 | 调整垫圈 | Adjusting washer | ||||
| 29 | 81.90711.0673 | 按需 | 调整垫圈 | Adjusting washer | ||||
| 29 | 81.90711.0674 | 按需 | 调整垫圈 | Adjusting washer | ||||
| 29 | 81.90711.0675 | 按需 | 调整垫圈 | Adjusting washer | ||||
| 29 | 81.90711.0676 | 按需 | 调整垫圈 | Adjusting washer | ||||
| 30 | 81.96002.0131 | 2 | 密封堵 | Seal plug | ||||
| 31 | Q151B16120TF2 | 4 | 六角头螺栓 | Hex.screw | ||||
| 32 | 06.33719.0065 | 2 | 滚针轴承 | Needle bearing | ||||
| 32 | 81.93402.6003 | 2 | 滚针轴承 | Needle bearing | ||||
| 32 | 06.33719.0066 | 2 | 滚针轴承 | Needle bearing | ||||
| 32 | 06.33719.0067 | 2 | 滚针轴承 | Needle bearing | SFF | |||
| 33 | 81.90770.0096 | 2 | 垫圈 | Washer | FAG (选用） |
