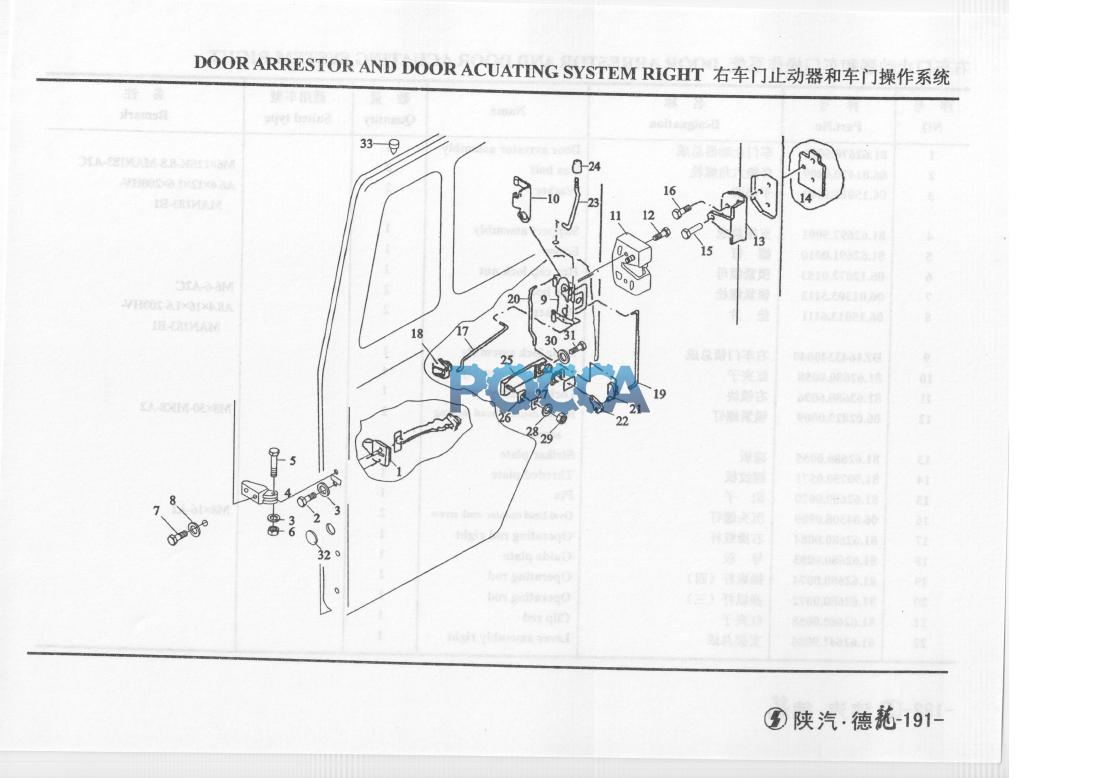

Замок правой двери SHAANXI (Шанкси) SHACMAN F2000 50 Гр. Кабина
Замок левой двери Защитный кожух
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | 81.62670.6011 | 1 | Door arrestor assembly | 车门止动器总成 | ||||
| 2 | 06.01470.0409 | 2 | Hex bolt | 带垫六角螺栓 | M6X12SK-&8-MAN183-A2C | |||
| 3 | 06.15013.6109 | 2 | Washer | 平垫圈 | A6.4xl2xl.6x200HV-MANia3-Bl | |||
| 4 | 81.62692.5001 | 1 | Support assembly | 支座总成 | ||||
| 5 | 81.62691.0010 | 1 | Screw | 螺钉 | ||||
| 6 | 06.12072.0153 | 1 | Hex cap lock nut | 锁紧螺母 | ||||
| 7 | 06.01303.3113 | 2 | Hex bolt | 锁紧螺栓 | M6-6-A2C | |||
| 8 | 06.15013.6111 | 2 | Washer | 垫片 | A8.4xl6xl.6-200HV-MAN183-B1 | |||
| 9 | DZ1643340040 | 1 | Door lock assembly | 右车门锁总成 | ||||
| 10 | 81.62680.0058 | 4 | Door lock assembly | 红夹子 | ||||
| 11 | 81.62680.6096 | 1 | Lock assembly | 右锁块 | ||||
| 12 | 06.02829.0009 | 2 | Raised conters head locking screw | 锁紧螺钉 | M8x30-MK8-A2 | |||
| 13 | 81.62680.0055 | 1 | Striker plate | 碰板 | ||||
| 14 | 81.90750.0571 | 1 | Threded plate | 螺纹板 | ||||
| 15 | 81.62680.0070 | 1 | Pin | 销子 | ||||
| 16 | 06.04308.0909 | 2 | Oval-head counter sunk screw | 沉头螺钉 | M8xl6-A2 | |||
| 17 | 81.62680.0084 | 1 | Operating rod right | 右操纵杆 | ||||
| 18 | 81.62680.0083 | 1 | Guide plate | 导板 | ||||
| 19 | 81.62680.0074 | 1 | Operating rod | 操纵杆（四） | ||||
| 20 | 81.62680.0072 | 1 | Operating rod | 操纵杆（三） | ||||
| 21 | 81.62680.0058 | 1 | Clip red | 红夹子 | ||||
| 22 | 81.62641.0086 | 1 | Lever assembly right | 支架总成 | ||||
| 23 | 81.62680.0086 | 1 | Operating rod assembly right | 右操纵杆 | ||||
| 23 | 81.62680.5014 | 1 | Operating rod assembly right | 右操纵杆 | ||||
| 24 | 81.62680.0049 | 2 | Knob | 按钮 | ||||
| 25 | 81.97100.6098 | 1 | Lock set in cab | 外手柄总成 | ||||
| 26 | 81.62642.0032 | 1 | Escutcheon | 橡胶垫板 | ||||
| 27 | 81.62642.0031 | 1 | Escutcheon | 橡胶垫板 | ||||
| 28 | 06.15191.0207 | 1 | Washer | 垫片 | 6.4xl8xl.6-140HV-MAN183-Bl | |||
| 29 | 06.11184.0112 | 2 | Hexagon nut | 六角螺母 | M6^-MAN183-B1 | |||
| 30 | 06.16739.0011 | 1 | Washer | 弹簧垫圈 | A6.4xl2xl.6-200HV- MAN183-B1 | |||
| 31 | 06.02829.0010 | 2 | Pan-head screw | 盘头螺钉 | M6xlO>MK54.8-N-A2C | |||
| 32 | 81.96001.0388 | 1 | Pan-head screw | 穿线护套 | ||||
| 33 | 81.96002.0142 | 2 | Plug | 塞子 | 8JXH-13-PE |
