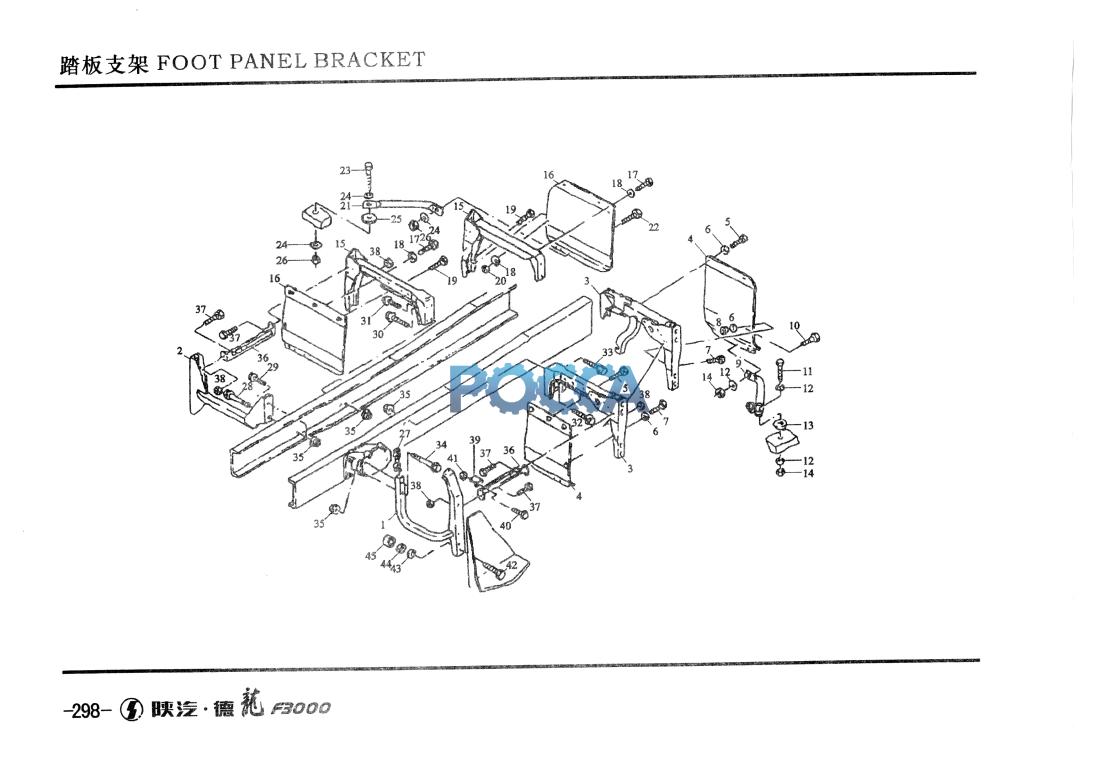

Кронштейн подножки SHAANXI (Шанкси) SHACMAN F3000 84 Гр. Оперение
Козырек солнцезащитный Крыло левое заднее, брызговик
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | DZ1640240255 | 1 | 左前踏板支架总成 | Bracket assembly left front | 940车架、抬高41 | |||
| 2 | DZ1640240245 | 1 | 右前踏板支架总成 | Bracket assembly right front | 940车架、抬高41 | |||
| 3 | DZ1640240260 | 1 | 左后踏板支架总成 | Bracket assembly right front | 940车架、抬高41 | |||
| 06.11251.2018 | 2 | 六角锁紧螺母 | Hex lock nut | M8-10-MAN183-B1 | ||||
| 4 | DZ1642240015 | 1 | 左后盖板 | Cover plate left rear | 940车架、抬高41 | |||
| 5 | 06.01303.2910 | 3 | 六角螺栓 | Hex bolt | M6X12SK-8.8-MAN183-A2C | |||
| 6 | 06.15013.0409 | 5 | 垫片 | Washer | A6.4X12X1.6-200HV- | |||
| 7 | 06.01283.4911 | 2 | 六角螺栓 | Hex bolt | M6X 16-8.8-MAN183-B1 | |||
| 8 | 06.11240.0303 | 2 | 六角锁紧螺母 | Hex lock nut | AM6-8-MAN183-B1 | |||
| 9 | 81.41890.0051 | 1 | 左支柱 | Support left | M8X18-8.8-MAN183-A2R | |||
| 10 | 06.01289.0262 | 1 | 六角螺栓 | Hex bolt | M8X28-8.8-MAN183-A2R | |||
| 11 | 06.01289.0264 | 1 | 六角螺栓 | Hex bolt | A8.4X 16X 1.6-200HV-MAN183-B | |||
| 12 | 06.15019.0084 | 4 | 垫片 | Washer | 8.4 X 24 X 2-140HV-MAN183-B4 | |||
| 13 | 06.15190.0409 | 1 | 垫片 | Washer | M8-8-MAN183-B4 | |||
| 14 | 06.11069.0158 | 2 | 六角螺母 | Hexagon nut | 940车架、抬高41自卸车 | |||
| 15 | DZ1640240250 | 1 | 右后踏板支架总成 | Bracket assembly right rear | 940车架、抬高41自卸车 | |||
| 16 | DZ1642240016 | 1 | 右后盖板总成 | Cover plate right rear | M6X 12SK-8.8-MAN183-A2C | |||
| 17 | 06.01303.2910 | 5 | 六角螺栓 | Hex bolt | A6.4X12X 1.6-200HV- | |||
| 18 | 06.15013.0409 | 5 | 垫片 | Washer | M6X 16-8.8>MAN183-B1 | |||
| 19 | 06.01283.4911 | 2 | 六角螺栓 | Hex bolt | AM16-8-MAN183-B1 | |||
| 20 | 06.11240.0303 | 2 | 六角螺栓 | Hex lock nut | M8X 188.8-MAN183-A2R | |||
| 21 | 81.41890.0050 | 1 | 六角螺栓 | Support right | M8 X28-8.8-MAN183-A2R | |||
| 22 | 06.01289.0262 | 1 | 六角螺栓 | Hex bolt | A8 4 V16XI.6-200HV- | |||
| 23 | 06.01289.0264 | 4 | 右支柱 | Hex bolt | 8.4X24X2-140HV-MAN183-B4 | |||
| 24 | 06.15019.0084 | 3 | 垫片 | Washer | M8-8-MAN183-B4 | |||
| 25 | 06.15190.0409 | 2 | 垫片 | Washer | M14 X 1.5 X 95-10.9-MAN 183-A3C | |||
| 26 | 06.11069.0158 | 1 | 六角螺母 | Hexagon rrut | M14X 1.5X45-10.9-MAN183-B1 | |||
| 27 | 81.41820.5061 | 1 | 衬垫总成 | Packing assembly | M14X 1.5X40-10.9-MAN183-B1 | |||
| 28 | 06.02815.8934 | 1 | 六角锁紧螺钉 | Hex lock screw | M14X 1.5X30-10.9-MAN183-B1 | |||
| 29 | 06.02813.4914 | 1 | 六角锁紧螺钉 | Hex lock screw | M14X 1.5 X 40-10.9-MAN 183-Bl | |||
| 30 | 06.02813.4913 | 2 | 六角锁紧螺钉 | Hex lock screw | M14 X 1.5 X 30-10.9-MAN183-B1 | |||
| 31 | 06.02813.4911 | 2 | 六角锁紧螺钉 | Hex lock screw | M14X 1.5X65-10.9-MAN183-B1 | |||
| 32 | 06.02813.4913 | 2 | 六角锁紧螺钉 | Hex lock screw | MMX 1.5-10-MAN183-B1 | |||
| 33 | 06.02813.4911 | 2 | 六角锁紧螺钉 | Hex lock screw | M8x 18-8.8-MAN183-B1 | |||
| 34 | 06.02813.4918 | 2 | 六角锁紧螺钉 | Hex lock screw | M8-10-MAN183-B1 | |||
| 35 | 06.11251.2005 | 8 | 六角锁紧螺钉 | Hex lock nut | M8X 18-8.8-MAN183-B1 | |||
| 36 | 81.41890.0044 | 2 | 支座 | Support | BM8-8-MAN183-B1 | |||
| 37 | 06.01283.5112 | 6 | 六角螺栓 | Hex bolt | M10 X 25-8.8-MAN183-B1 | |||
| 38 | 06.11251.2018 | 6 | 六角锁紧螺母 | Hex lock nut | 10.5 X 30 X 2.5-140HV-a2-a3R | |||
| 39 | 81.27421.0151 | 2 | 压力力传感器 | Sensor | BM 10-8-MAN 183-Bl | |||
| 40 | 06.01283.5112 | 2 | 六角螺栓 | Hex bolt | ||||
| 41 | 06.11240.0404 | 2 | 六角锁紧螺母 | Hex lock nut | ||||
| 42 | 06.01283.5215 | 8 | 六角螺母 | Hex bolt | ||||
| 43 | 06.15199.0016 | 8 | 垫圈 | Washer | ||||
| 44 | 06.11240.0406 | 8 | 六角锁紧螺母 | Hex lock nut | ||||
| 45 | 88.96002.0027 | 8 | 盖 | Cap |
