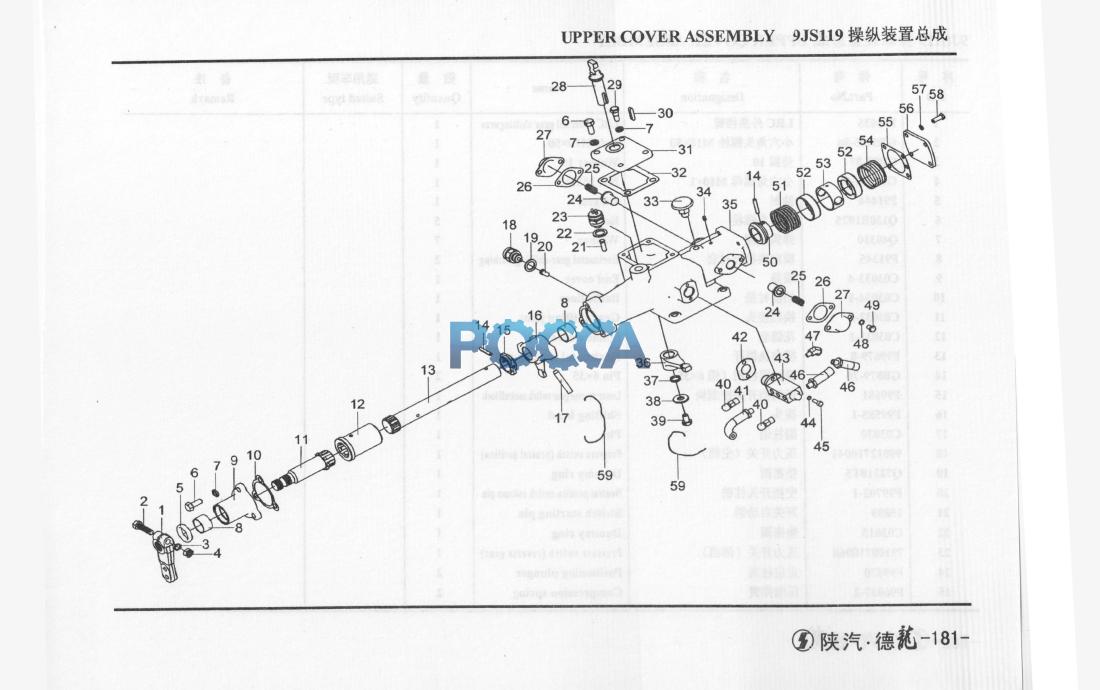

Механизм управления переключения передач. КПП 9JS119 SHAANXI (Шанкси) SHACMAN F2000 17 Гр. Коробка передач
Крышка КПП верхняя КПП 9JS119 Прмежуточный вал КПП 9JS119
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | F96035 | 1 | LRC外换档臂 | LRC External gear shiftingarm | ||||
| 2 | GB5785-86 | 1 | 小六角头螺栓M1〇x50 | Bolt Ml〇x50 | ||||
| 3 | GB93-87 | 1 | 垫圈10 | Washer 10 | ||||
| 4 | GB6171-86 | 1 | 小六角螺母Ml〇xl | Nut Ml〇xl | ||||
| 5 | F91444 | 1 | 油封 | Oil seal | ||||
| 6 | Q150B1025 | 5 | 六角头螺栓 | Bolt | ||||
| 7 | Q4D310 | 7 | 弹簧垫圈 | Washer | ||||
| 8 | F91345 | 2 | 横向换档杆衬套 | Horizontal gear-shifting bushing | ||||
| 9 | C03033-4 | 1 | 端盖 | End cover | ||||
| 10 | C03034-1 | 1 | 挡板衬垫 | Baffle liner | ||||
| 11 | C03032-5 | 1 | 换档接头 | Gear shifting joint | ||||
| 12 | C03031-1 | 1 | 花键套 | Spline sleeve | ||||
| 13 | F99679-8 | 1 | 横向换档杆 | Horizontal shifting rod | ||||
| 14 | GB879-76 | 2 | 弹性圆柱销（销6x35) | Pin 6x35 | ||||
| 15 | F99681 | 1 | 低倒档开关控制块 | Lower reverse gear switch controlblock | ||||
| 16 | F99585-1 | 1 | 拨头 | Shifting head | ||||
| 17 | C03030 | 1 | 圆柱销 | Pin | ||||
| 18 | 99012710041 | 1 | 压力开关（空档） | Pressure switch (neutral position) | ||||
| 19 | Q72318T5 | 1 | 垫密圈 | Dummy ring | ||||
| 20 | F99702-1 | 1 | 空档开关柱销 | Neutral position switch column pin | ||||
| 21 | 15899 | 1 | 开关启动销 | Switch starting pin | ||||
| 22 | C03015 | 1 | 垫密圈 | Dummy ring | ||||
| 23 | 79100710068 | 1 | 压力开关（倒档） | Pressure switch (reverse gear) | ||||
| 24 | F99670 | 2 | 定位柱塞 | Positioning plunger | ||||
| 25 | F96037-2 | 2 | 压缩弹簧 | Compression spring | ||||
| 26 | F96140 | 2 | 衬垫 | Liner | ||||
| 27 | F96141 | 2 | 弹簧压盖 | Spring gland | ||||
| 28 | C03038-1 | 1 | 选档接头 | Gear choosing joint | ||||
| 29 | C03040-1 | 2 | 定位螺钉 | Positioning screw | ||||
| 30 | Q5510628 | 1 | 平键 | Flat key | ||||
| 31 | C03036-1 | 1 | 窗口盖 | Window lid | ||||
| 32 | C03037-1 | 1 | 窗口衬垫 | Window liner | ||||
| 33 | 15276 | 1 | 通气塞 | Ventilation plug | ||||
| 34 | C03004 | 1 | 止动螺钉 | Stop screw | ||||
| 35 | F96194-6 | 1 | 双H操纵装置壳体 | Dual H control devicehull | ||||
| 36 | C03035-1 | 1 | 选档拨头 | Gear-choosing shifting head | ||||
| 37 | HG4-333-66 | 1 | 〇型密封圈（20x2.4) | O-ring | ||||
| 38 | C03039-1 | 1 | 垫圈 | Washer | ||||
| 39 | Q170B1016 | 1 | 六角头头部带孔螺栓 | Hex head bolt with hole inhead | ||||
| 40 | 7935 | 2 | 通气塞 | Ventilation plug | ||||
| 41 | 55521 | 1 | 气管总成 | Air pipe assembly | ||||
| 42 | F91353 | 1 | 双H气阀衬垫 | Dual H air valve liner | ||||
| 43 | F99660 | 1 | 双H气阀 | Dual H air valve | ||||
| 44 | GB93-76 | 2 | 弹簧垫圈6 | Washer 6 | ||||
| 45 | GB70-76 | 2 | 内六角螺钉（M6X18) | Inner hex screw M6^1 | ||||
| 46 | 55506 | 2 | 气管总成 | Air pipe assembly | ||||
| 47 | 12880 | 1 | 45弯管接头 | 45° syphon joint | ||||
| 48 | GB859-76， | 4 | 弹簧垫圈8 | Washer 8 | ||||
| 49 | GB21-76 | 4 | 小六角头螺栓M842 | Bolt M8xl2 | ||||
| 50 | F99675 | 1 | 定位环 | Positioning ring | ||||
| 51 | F96036-1 | 1 | compression spring | |||||
| 52 | F99673 | 2 | spring seat | |||||
| 53 | F99674 | 1 | spring spacer tube | |||||
| 54 | F99983-1 | 1 | compression spring | |||||
| 55 | F99672 | 1 | end liner | |||||
| 56 | F99666 | 1 | side borad | |||||
| 57 | GB93-76 | 4 | washer 9 | |||||
| 58 | GB21-76 | 4 | bolt m8x22 | |||||
| 59 | 1819 | iron wire |
