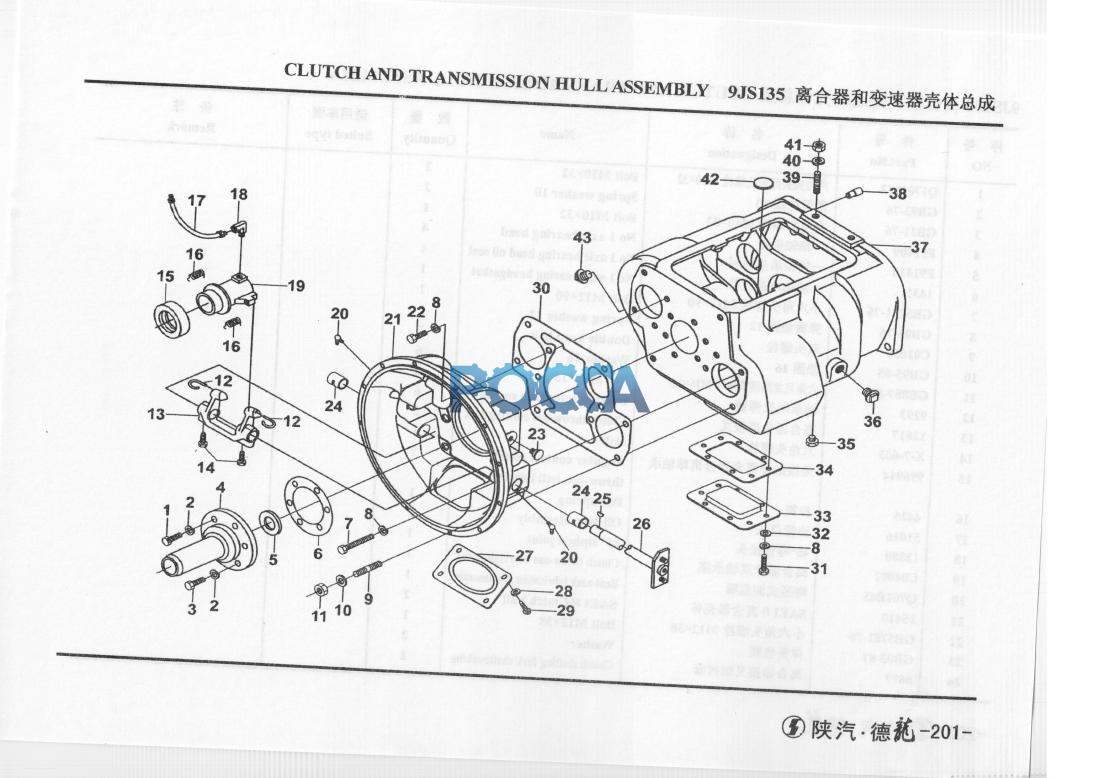

Корпус КПП в сборе 9JS135 SHAANXI (Шанкси) SHACMAN F2000 17 Гр. Коробка передач
Клапан управления кпп 9JS135 Крышка задняя КПП 9JS135
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|
| Номер на рисунке | Название в интернет-магазине | Остаток | Артикул | Кол-во в автомобиле | Название 1 | Название 2 | Примечание 1 | Примечание 2 |
|---|---|---|---|---|---|---|---|---|
| 1 | Q1701032 | 2 | 六角头头部带孔螺栓Ml〇x32 | Bolt Ml〇x32 | ||||
| 2 | GB93-76 | 2 | 弹簧垫圈10 | Spring washer 10 | ||||
| 3 | GB21-76 | 1 | 六角头螺栓M10X32 | Bolt Ml〇x32 | ||||
| 4 | F91409 | 4 | 一轴轴承盖 | No 1 axle bearing head | ||||
| 5 | F91410 | 4 | 一轴轴承盖油封 | No 1 axle bearing head oil seal | ||||
| 6 | 14311 | 1 | 一轴轴承盖衬垫 | No 1 axle bearing headgasket | ||||
| 7 | GB5721-76 | 1 | 小六角头螺栓M12X90 | Bolt M12x90 | ||||
| 8 | GB93-76 | 2 | 弹簧垫圈12 | Spring washer 12 | ||||
| 9 | C01056 | 2 | 双头螺栓 | Double head bolt | ||||
| 10 | GB95-85 | 6 | 垫圈16 | Washer 16 | ||||
| 11 | GB889-80 | 6 | 六角尼龙圈锁紧螓母M16X1.5 | Nut M16xl5 | ||||
| 12 | 9293 | 6 | 轴承回位弹簧 | Bearing returning spring | ||||
| 13 | 12817 | 2 | 离合器分离拨叉 | Clutch throw-out shiftingfork | ||||
| 14 | X-7-603 | 1 | 六角头螺栓 | Bolt | ||||
| 15 | 996914 | 2 | 角接触型离合器分离球轴承 | Angular contact clutch throw-out ball bearing | ||||
| 16 | 4425 | 1 | 拉簧 | Pull spring | ||||
| 17 | 51016 | 2 | 油管总成 | Oil pipe assembly | ||||
| 18 | 12880 | 1 | 45°弯管接头 | 45° siphon joint | ||||
| 19 | C04002 | 1 | 离合器分离轴承座 | Clutch throw-out bearinghousing | ||||
| 20 | Q701B45 | 1 | 弯颈式润脂嘴 | Bent<neck lubricatioir greasenozzle | ||||
| 21 | 15410 | 2 | SAE1 #离合器壳体 | SAE1# Clutch hull | ||||
| 22 | GB5782-76 | 1 | 小六角头螺栓M12W8 | Bolt M12x38 | ||||
| 23 | GB93-87 | 2 | 弹簧垫圈 | Washer | ||||
| 24 | 8677 | 2 | 离合器拨叉轴衬套 | Clutch shifting fork shaftbushing | ||||
| 25 | X-6-11 | 1 | 半圆键 | Semi-round key | ||||
| 26 | A-C04009 | 1 | 离合器分离拨叉轴总成 | Clutch throw-out shifting fork shaftassembiy | ||||
| 27 | 1565 | 1 | 离合器手孔盖 | Clutch hand hole plate | ||||
| 28 | GB93-76 | 1 | 小六角头螺栓M8xl2 | Bolt M8xl2 | ||||
| 29 | GB21-76 | 1 | 小六角头螺栓M12X25 | Bolt M12x25 | ||||
| 30 | 20822 | 1 | 离合器壳体衬垫 | Clutch hull liner | ||||
| 31 | GB21-76 | 4 | 小六角头螺栓M12X2S | Bolt M12x25 | ||||
| 32 | GB97.1-85-12-140HV | 8 | 平垫圈12 | Washer 12 | ||||
| 33 | 16596 | 1 | 底取力窗口 | Lower power takeoff window | ||||
| 34 | 16929 | 1 | 底取力窗口衬垫 | Lower power takeoff window liner | ||||
| 35 | Q614B06 | 1 | 方头锥形螺塞NPT3/4 | Square-head bevel plug | ||||
| 36 | Q614B12 | 1 | 方头锥形螺塞 | Square-head bevel plug | ||||
| 37 | 18686 | 1 | 变速器壳体 | Transmission hull | ||||
| 38 | 14334 | 2 | 后盖定位销 | Rear cover locating pin | ||||
| 39 | Q1231630 | 2 | 双头螺栓 | Double head bolt | ||||
| 40 | GB93-76 | 2 | 弹簧垫圈16 | Washer 16 | ||||
| 41 | GB52-76 | 2 | 六角螺母M16X1.5 | Nut M16xl.5 | ||||
| 42 | 14373 | 3 | 圆磁铁 | Round magnet | ||||
| 43 | Q61304 | 1 | 方头锥形螺塞 | Square-head bevel plug |
