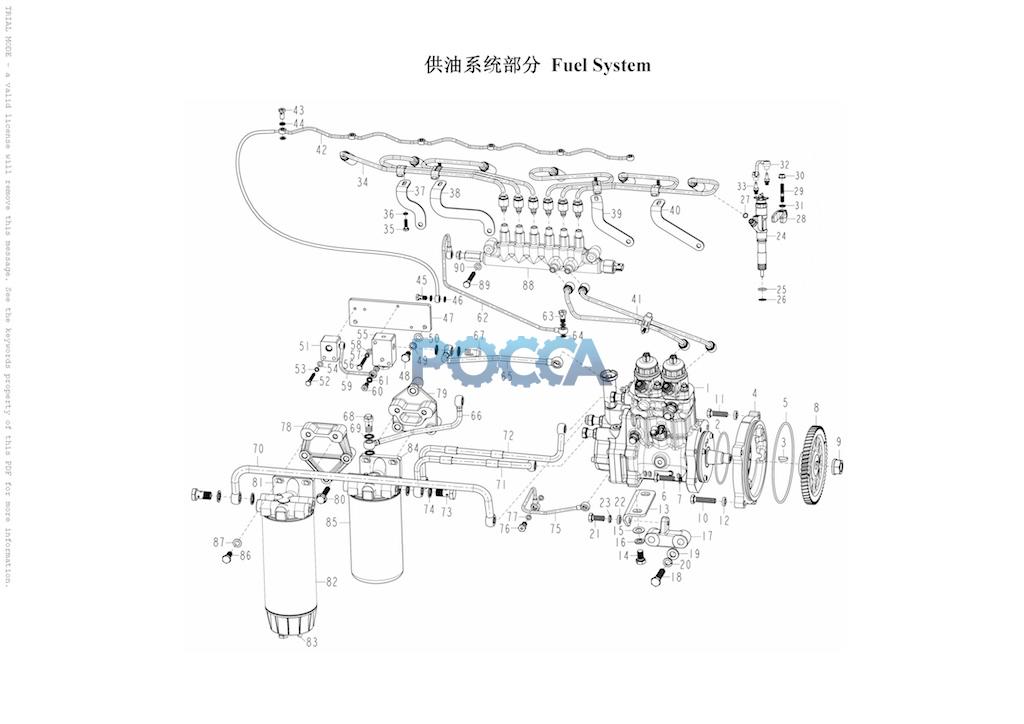

Топливная система HOWO (Хово) D12 Euro3

Номер на рисунке	Название в интернет-магазине	Остаток	Артикул	Кол-во в автомобиле	Название 1	Название 2	Примечание 1	Примечание 2

Номер на рисунке	Артикул	Кол-во в автомобиле	Название 1	Примечание 1
1	VG1246080050	1	Fuel injection pump
2	VG1246080028	1	O-ring
3	R61540080312	1	Woodruff key
4	VG1246080056	1	Flange
5	VG1246080027	1	O-ring
6	Q150B1035TF2	4	Flex head bolt
7	Q40110	4	Washer
8	VG1246080029	1	Fuel injection pump gear
9	VG1246130010	1	Flexagon nut
10	Q150B1045TF2	2	Flex head bolt
11	Q150B1035TF2	2	Flex head bolt
12	VG1246080042	4	Washer
13	VG1246080054	1	Bracket
14	Q150B1220	2	Flex head bolt
15	Q40112	2	Washer
16	Q40312	2	Spring washer
17	VG1246080055	1	Bracket
18	Q150B1250	2	Flex head bolt
19	VG1246080044	2	Washer
20	Q40312	2	Spring washer
21	Q150B1025	1	Hex head bolt
22	VG1246080042	1	Washer
23	Q40310	1	Spring washer
24	VG1246080051	6	Fuel injector
25	VG1540080018A	6	O-ring
26	VG1540080019B	6	Washer
27	VG1540080095	6	O-ring
28	VG1246080039	6	Fuel injector clamp
29	VG1099040030	6	Hex head bolt
30	VG1099040010	6	Nut
31	VG1540080024	6	Spherical washer
32	VG1099089065	6	Fuel return pipe
33	VG1099089064	12	Tie-in
34	VG1246080001	1	Injection pipe assembly
35	Q150B0620	4	Hex head bolt
36	Q41806	4	Spring washer
37	VG1246080066	1	Bracket
38	VG1246080067	1	Bracket
39	VG1246080068	1	Bracket
40	VG1246080069	1	Bracket
41	VG1246080070	1	Fuel injection pipe
42	VG1246080008	1	Fuel return pipe assembly
43	VG1246080077	6	FIollow bolt
44	VG1540080200	12	Sealing washer
45	190003962603	1	FIollow bolt
46	VG9003080002	2	Sealing washer
47	VG1540080070	1	Mounting plate
48	Q150B1020	2	Flex head bolt
49	Q40310	2	Spring washer
50	Q40110	2	Washer
51	VG1540080067	1	Fuel temp sensor bracket
52	Q150B0645	2	Flex head bolt
53	Q40306	2	Spring washer
54	Q40106	2	Washer
55	VG1540080071	1	Oil return bracket
56	Q150B0645	2	Hex head bolt
57	Q40306	2	Spring washer
58	Q40106	2	Washer
59	VG1246080079	1	Fuel return pipe
60	190003962603	2	Hollow bolt
61	VG9003080002	4	Sealing washer
62	VG1246080015	1	Common rail relief pipe
63	190003962607	1	Hollow bolt
64	VG9003080003	1	Sealing washer
65	VG1246080017	1	Fuel injection pump relief pipe
66	VG1246080013	1	Fuel filter relief pipe
67	190003962621	3	Hollow bolt
68	VG1540080022	1	Overflow valve
69	VG9003080005	8	Sealing washer
70	VG1246080019	1	Fuel pipe
71	VG1246080012	1	Fuel pipe
72	VG1246080011	1	Fuel pipe
73	VG1246080014	4	Hollow bolt
74	VG9003080006	8	Sealing washer
75	VG1246080016A	1	Oil pipe
76	190003962607	1	Hollow bolt	A4 DIN7623 6S
77	VG9003080003	2	Sealing washer
78	VG1246080020	1	Primary fuel filter bracket
79	VG1246080023	1	Final fuel filter bracket
80	Q1841050	6	Hex head bolt
-	VG1246080075	1	Primary fuel filter assembly
81	VG1246080088	1	Primary fuel filter body
-	VG1096080037	1	Oil filter and drain valve with sensor
82	VG1540080211	1	Oil filter
83	VG1096080034	1	Drain valve with water sensor
-	VG1246080086	1	Final fuel filter assembly
84	VG1246080089	1	Final fuel filter body
85	VG1540080110	1	Final fuel filter
86	Q150B1025	4	Hex head bolt
87	Q41810	4	Spring washer
88	R61540080016	1	Rail
89	Q150B0855	2	Hex head bolt
90	Q41808	2	Spring washer
